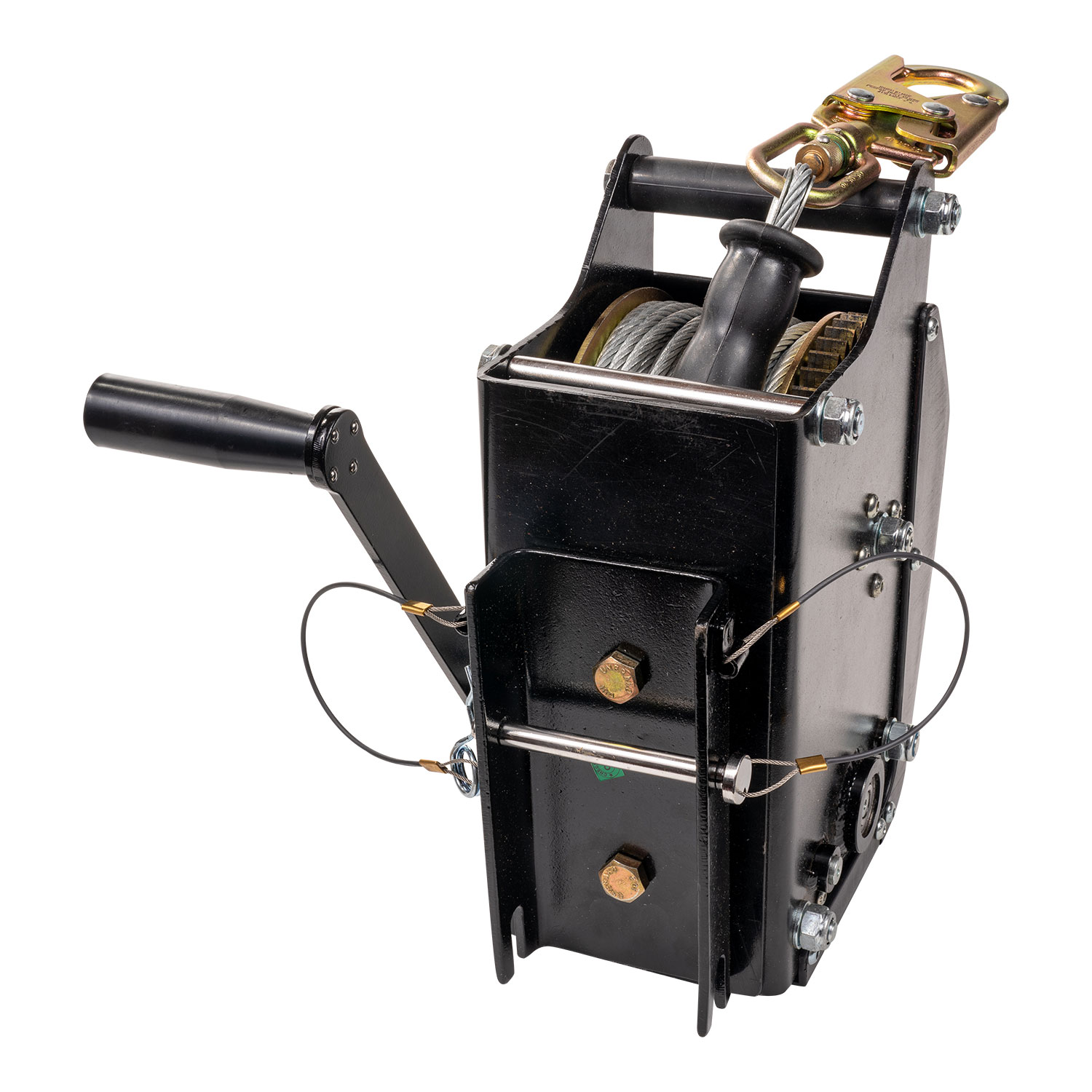

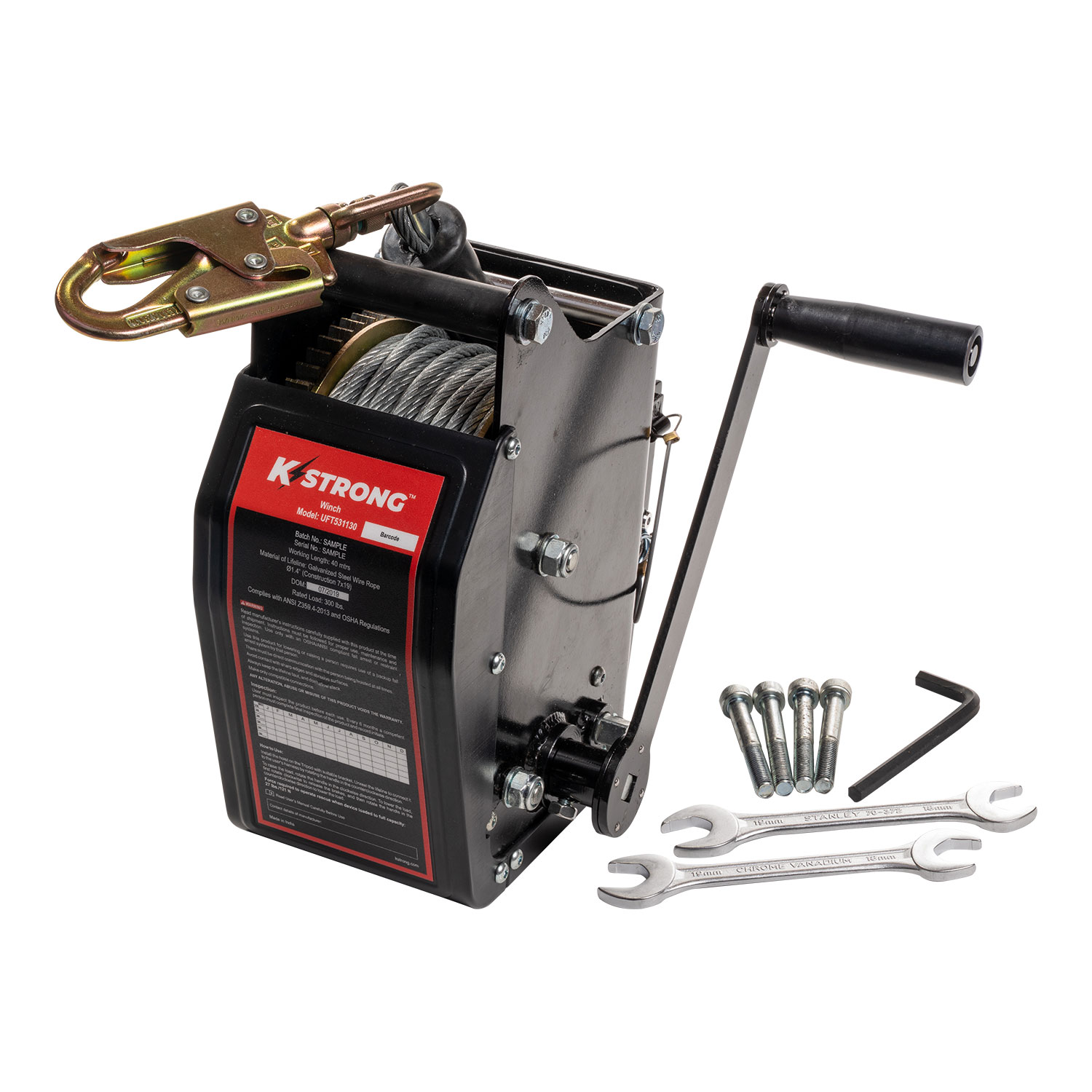

KStrong Galvanized wire cable Personnel/Material rated bi-directional safety winch for confined spaces

DESIGN:

• Material or man lifting rescue winch.
• Mounting plate having four bolts for mounting to Davit Arm DA 01, DA 02, DA 03, DA 04, SA 17 & PN 800/PN 800A with use of specialized brackets.
• Galvanized steel wire rope of 3/16” (76/406 mm) & length of 60’ (1524 mm) maximum.
• Equipped with Swivel Steel Snap Hook (PN 144 as per ANSI Z359.12-2009 gate strength 3600 lbs. (1633 kg)) as connector.
• Handle rotating mechanism for lifting or lowering.

BODY:

Material: Galvanized steel

RATED LOAD CAPACITY:

300 lbs. (136 kg)

WEIGHT:

20.40 lbs. ± 0.02 lbs. (9253 gm ± 10 gm)

RELEVANT STANDARDS:

Meets or Exceeds ANSI Z359.14-2014
